Our Products

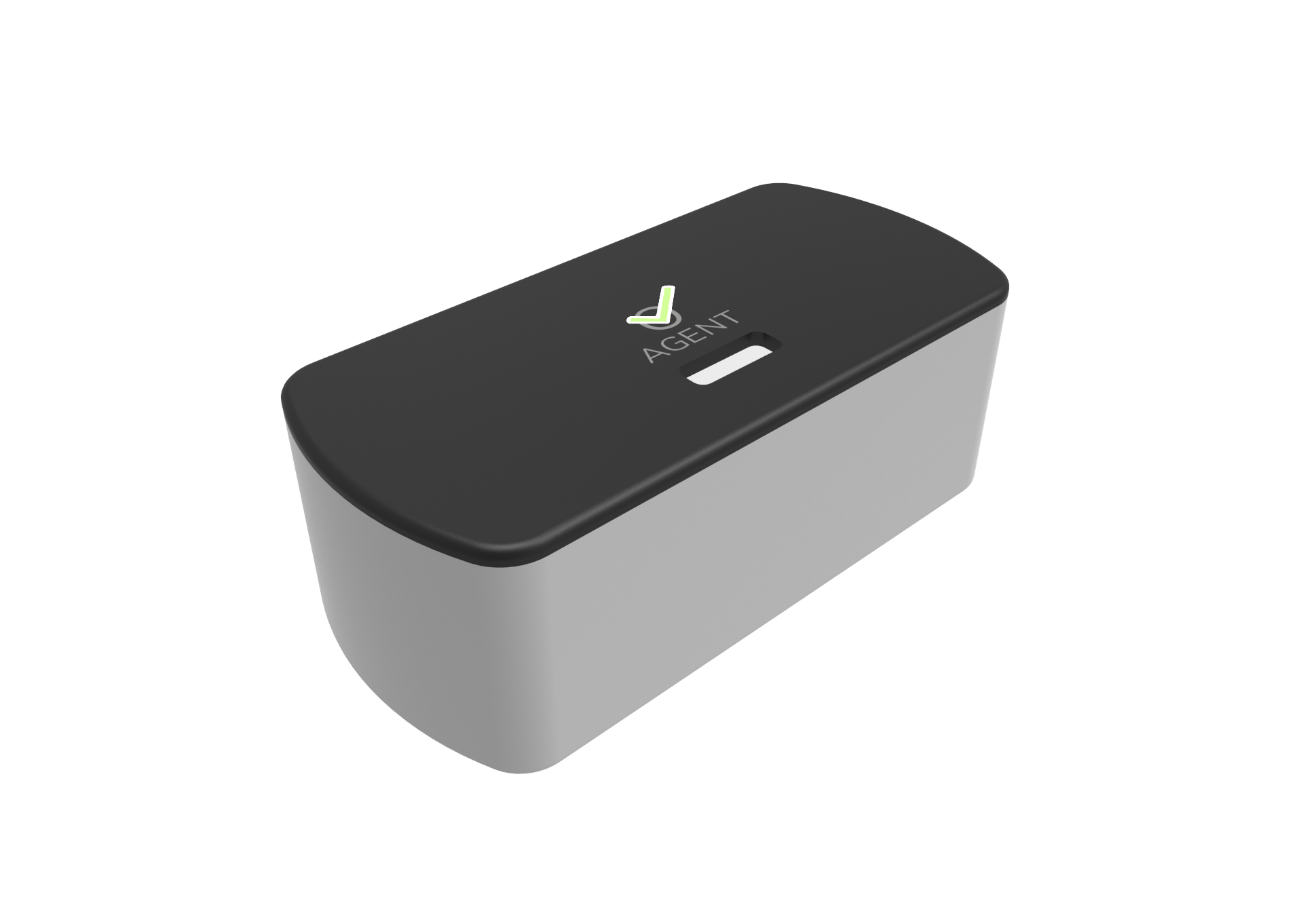

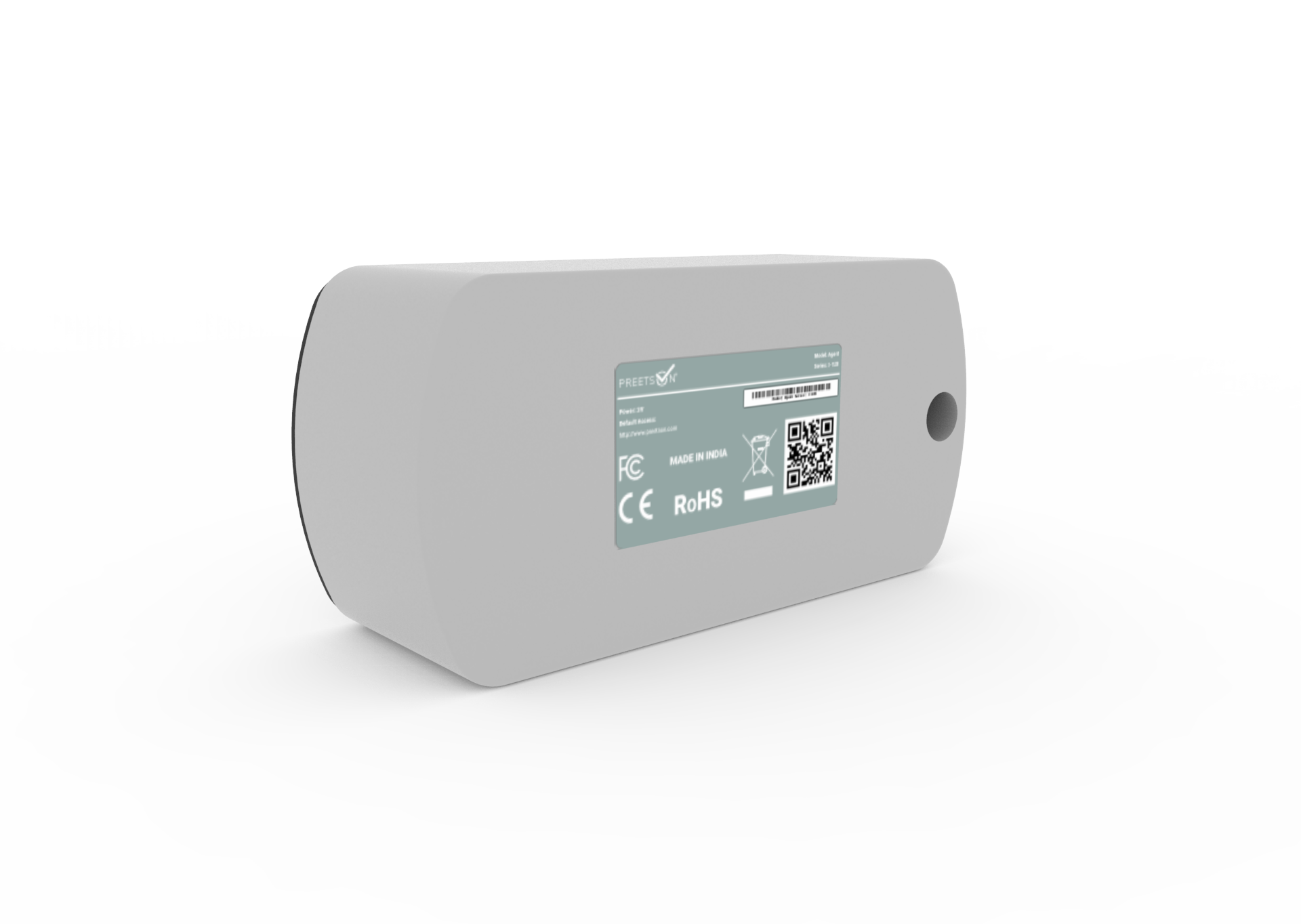

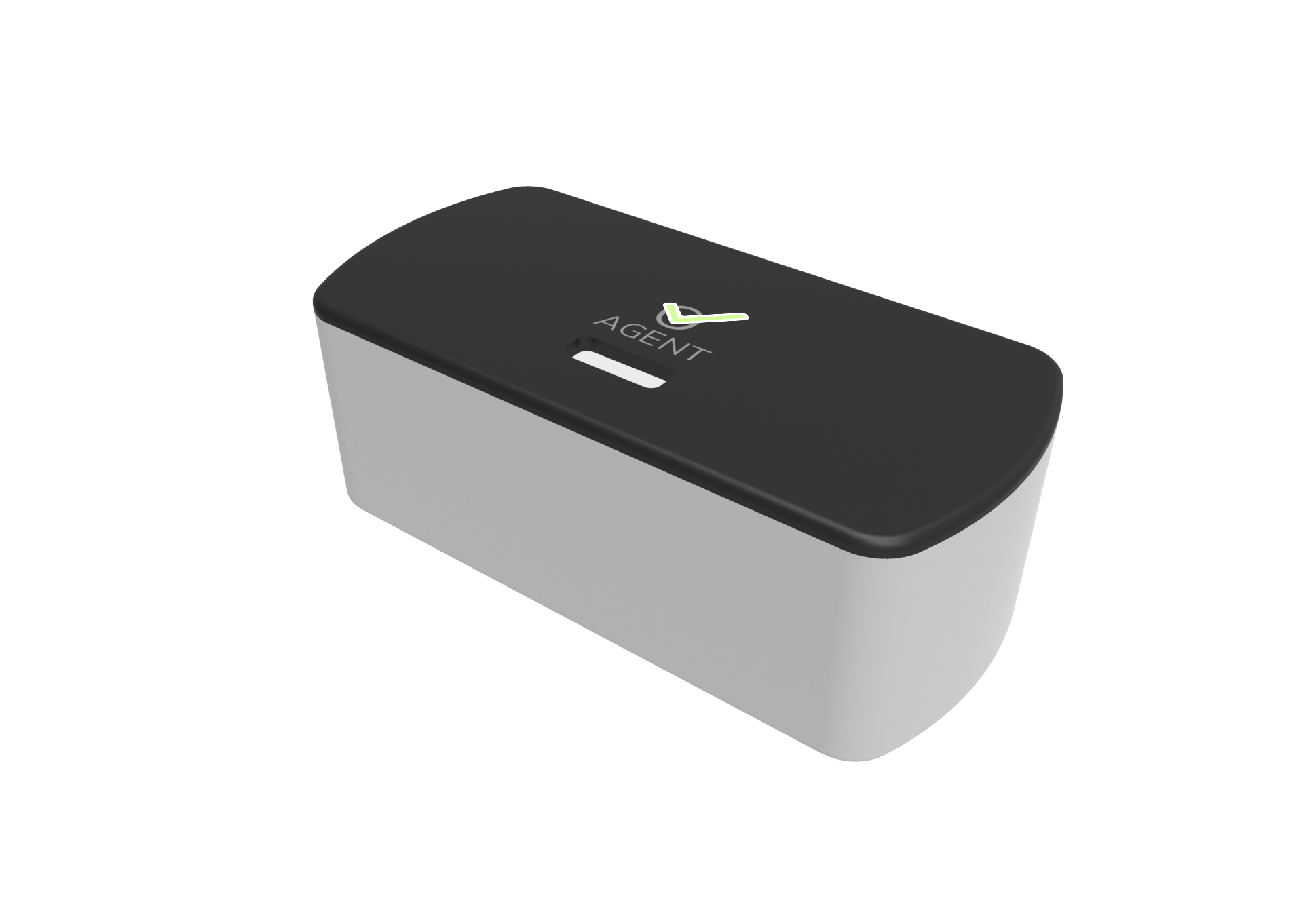

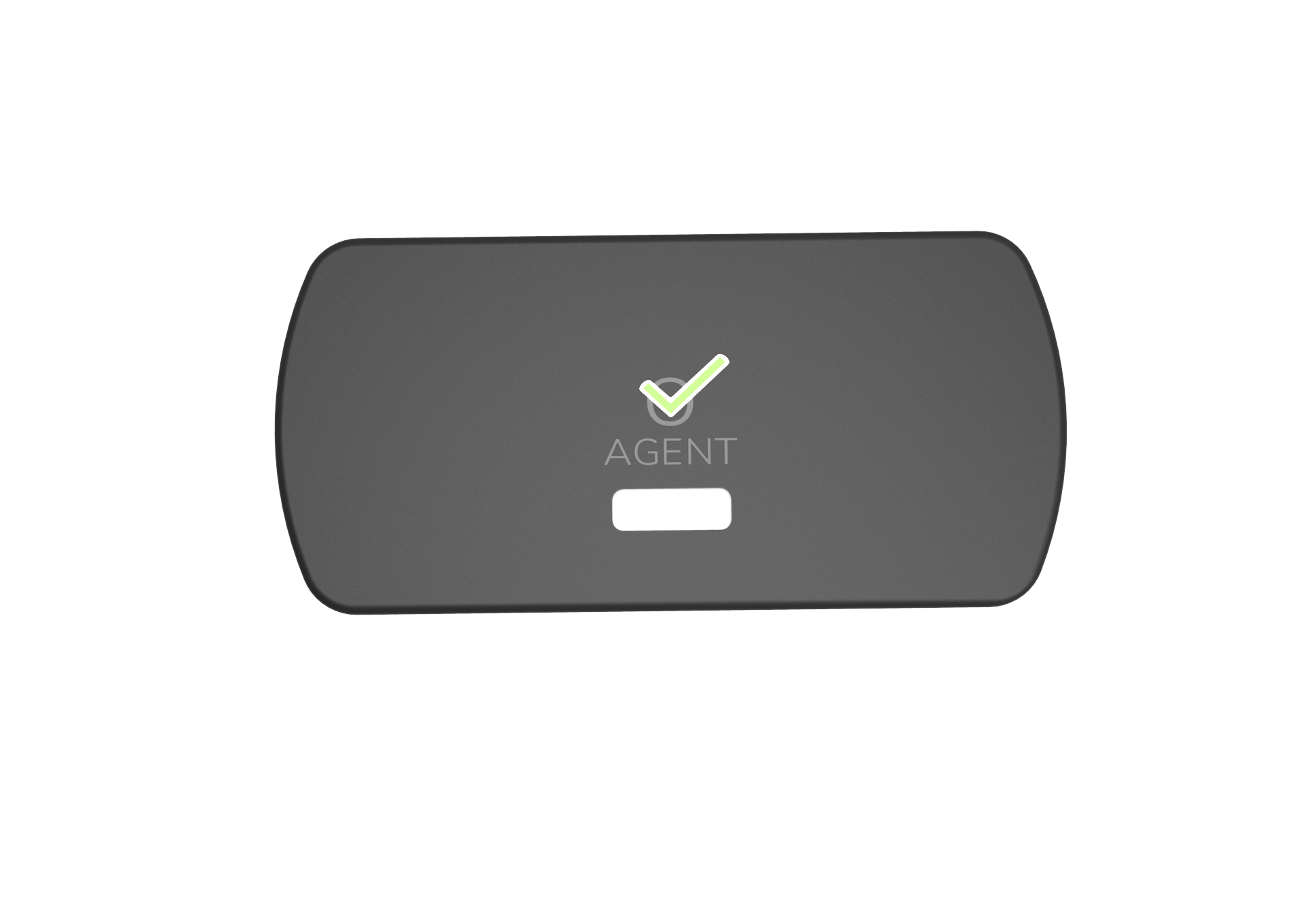

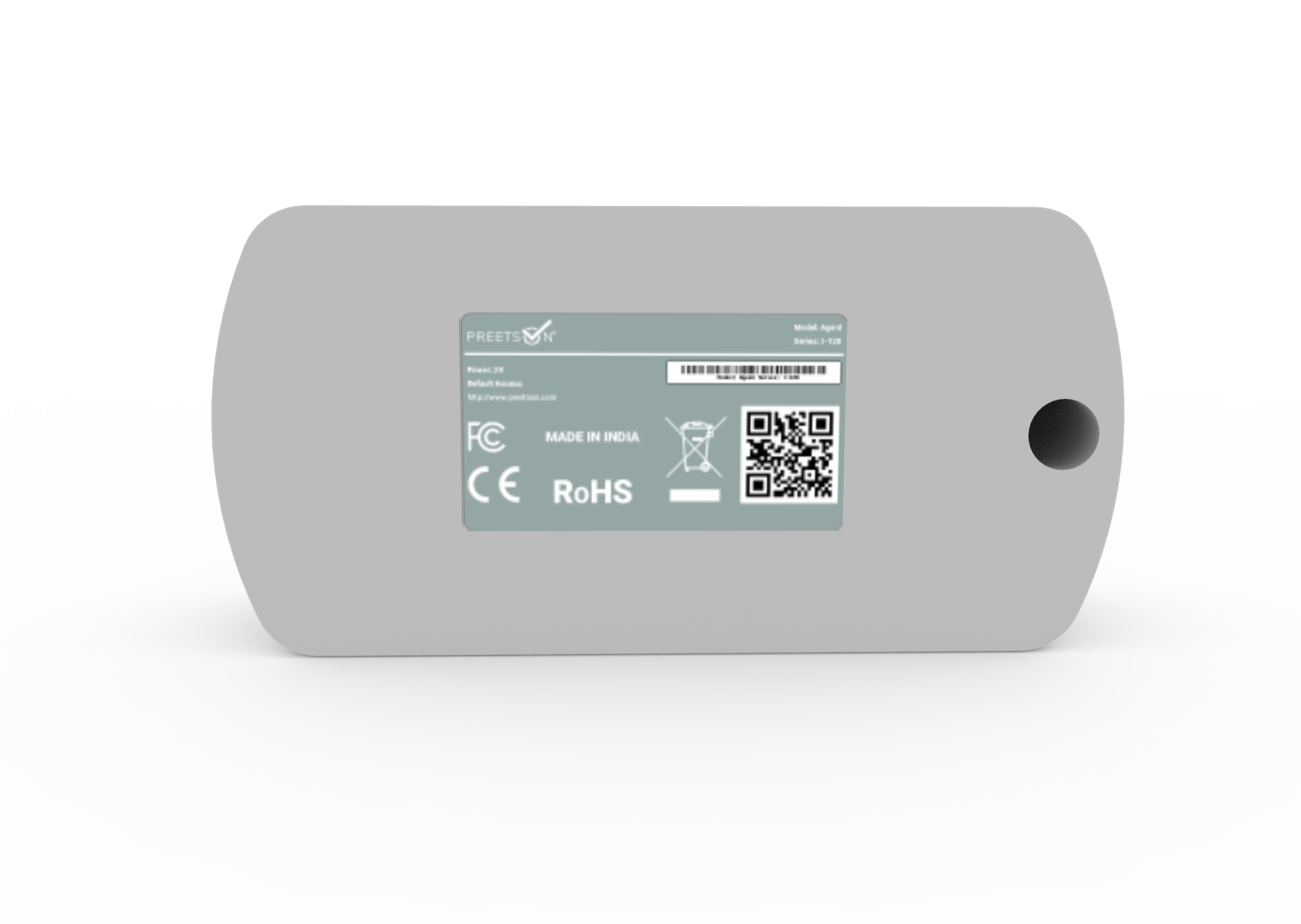

AGENT
Technical Specification
| Bluetooth | Version 5.0 |
| Bluetooth Range | 100 meters |
| Compatible Sensors | 3V input and 12 bit ADC(Example: Temperature LM35 Sensor) |
| Power | 3V Input using (2 AA Batteries) |
| Sleep Current | Upto 5 uA (Micro ampere) |
| Life On Batteries | Upto 3 years. It may vary based on the power consumption |
Features
- The Agents are the primary data collector of the sensor data.
- These can directly plug with the device having sensors to collect the data or can be embedded with a sensor having 3V input and 12-bit ADC (Example: Temperature LM35 Sensor).
- You can easily configure these agents using a mobile app to decide where these agents will send the data.
- As these agents are battery operated there is no need of having power cable connectivity.
- Also, these agents interact with the Gateway using Bluetooth Mesh protocol, so no data cable is required which will result in simple implementation and no overhead of maintenance.
- This product is FCC and CE certified and designed to operate in a tough industrial environment.
- You will get the battery life on the mobile app or your dashboard or alerts to the maintenance team for the replacement.

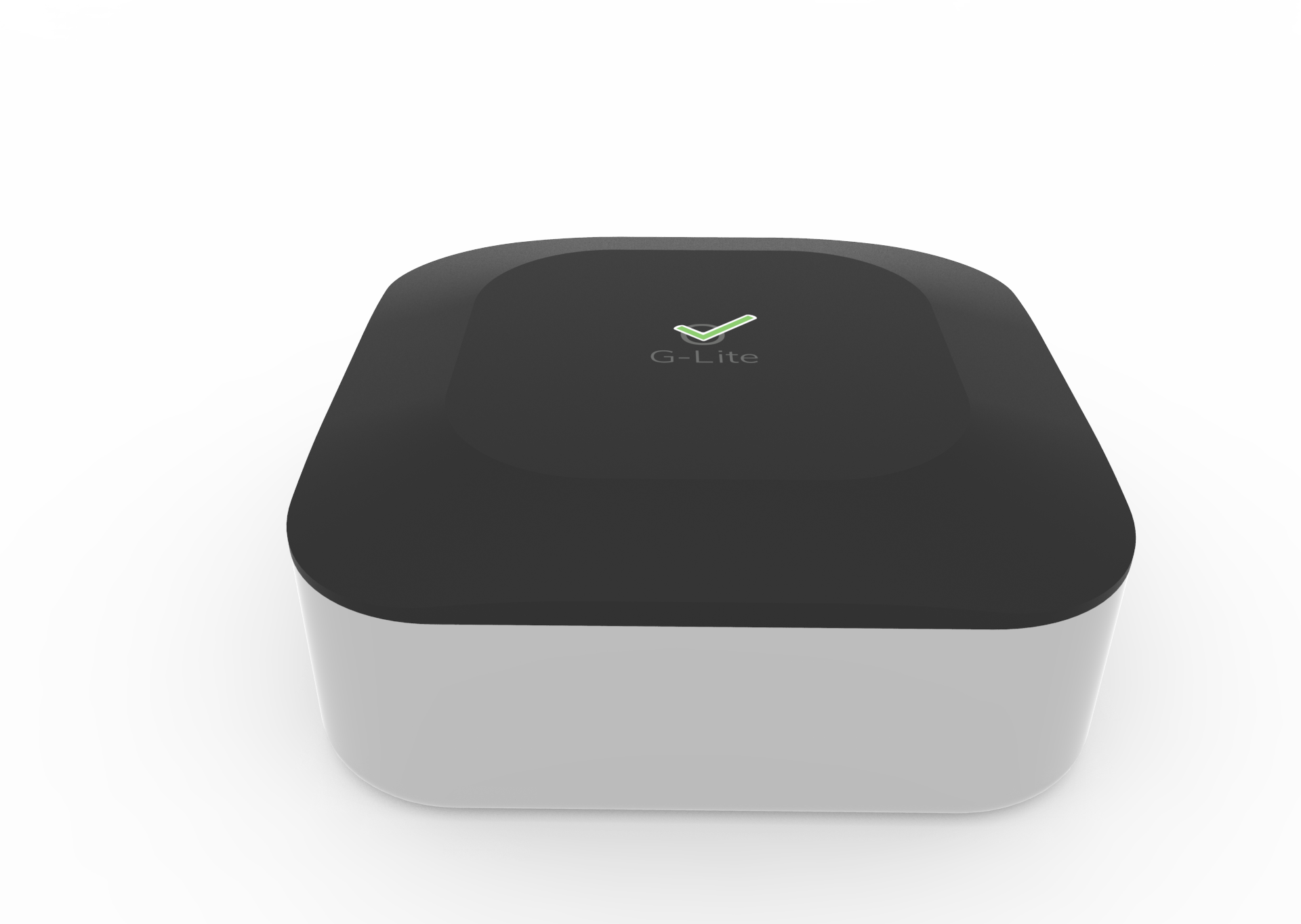

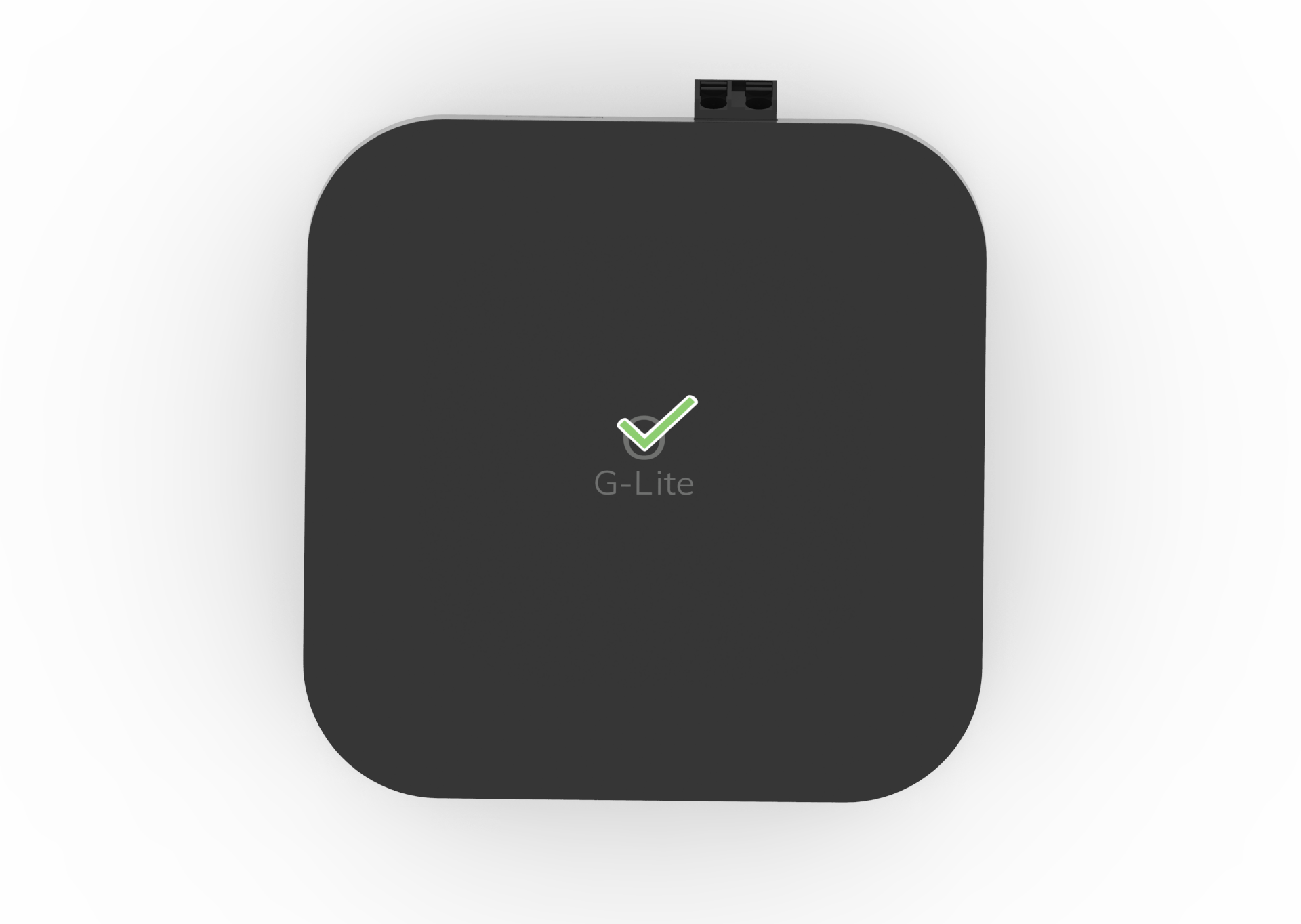

GATEWAY LITE
Technical Specification
| Bluetooth | Version 4.2 |
| Power | 100 – 240V AC 50/60 Hz Input |
| Onboard Flash Memory | 16MB |
| Processor | 240 MHz Processor |
| WiFi | 2.4 GHz |
| RGB LED Driver | 1 W RGB LED Driver |
Features
- Gateway LITE is designed to communicate with only one agent using Bluetooth.
- It requires 100 – 240V AC 50/60 Hz Input to power up.
- It can connect with the internet using Wi-Fi only and can easily integrate with any cloud platform using the HTTP protocol.
- Users can easily configure Gateway Lite using a Mobile app.
- This product is FCC and CE certified and designed to operate in a tough industrial environment.

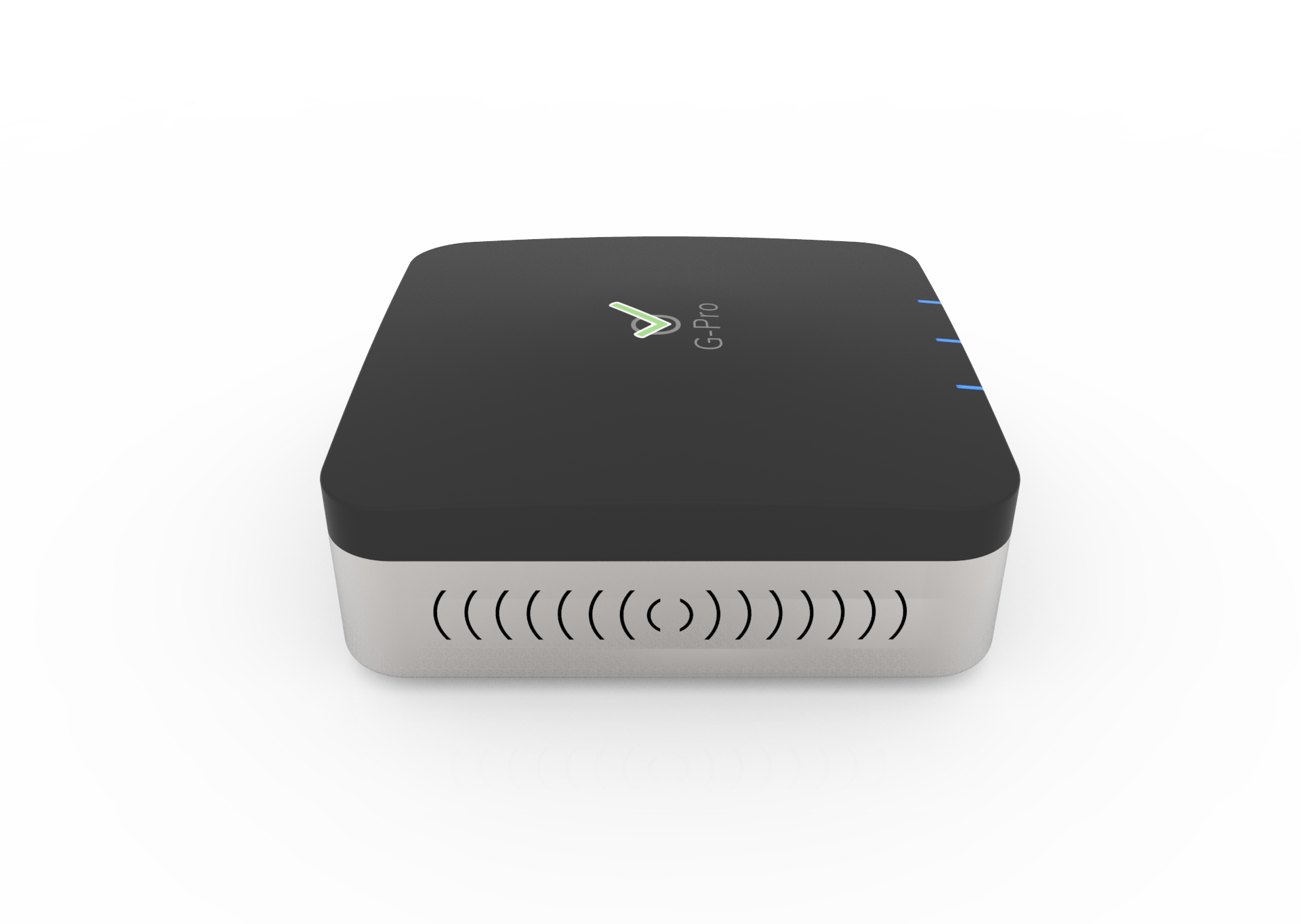

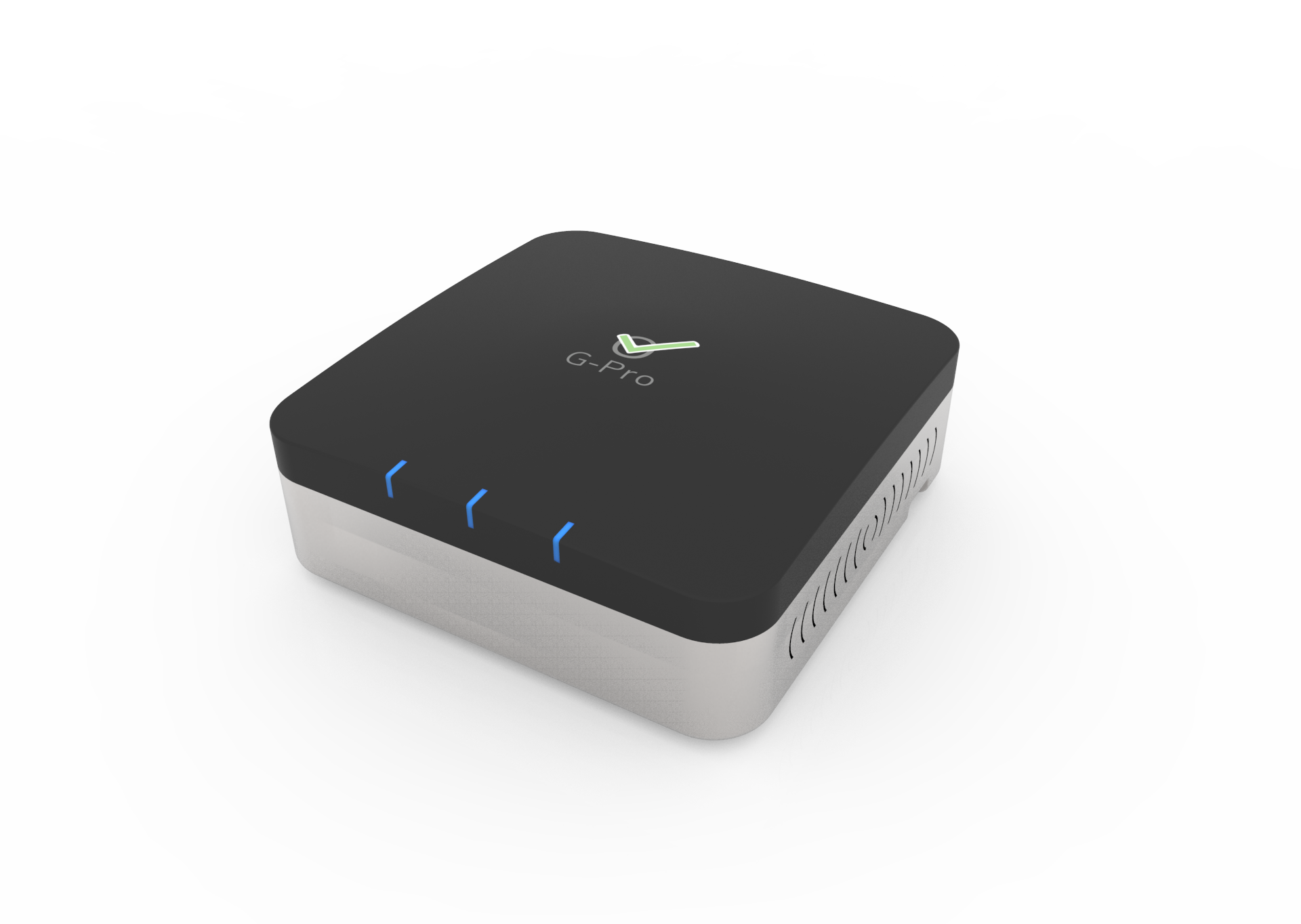

GATEWAY PRO
Technical Specification
| Bluetooth | Version 5.0 |
| Power | 5V 15Watts Input (Micro USB Type C) |
| RAM | 8 GB |
| Onboard Flash Memory | 32 GB |
| Processor | 64bit ARM |
| WiFi | 2.4 GHz IEE 802.11 AC Wireless |
| Ethernet | 1 GBit Ethernet |
| SIM Card | LTE (with 2G fallback) |
| Operating System | Linux |
| LEDs | Internet Connectivity SIM Connectivity Bluetooth Connectivity |
| USB 1 | USB 3.1 |
| USB 2 | USB 3.1 |
Features
- Gateway PRO buffers data sent from multiple Agents. It can acquire data from 100+ concurrent agents connected in the Bluetooth Mesh network.
- It is powered using a 5V adapter having micro USB (Type C).
- It can integrate with any cloud platform like (Azure, AWS, Google Cloud).
- It has 16 GB of internal storage; hence it can easily buffer one week’s data in case of network failure.
- It also has 2 USB ports for connecting external storage (Pen drive or Ext. Hard disc).
- It has 3 options to connect with the internet.
- Ethernet port.
- 4G LTE SIM Card (with 2G fallback)
- Wi-Fi (2.4 GHz IEE 802.11 AC Wireless)
- This product is FCC and CE certified and designed to operate in a tough industrial environment.
- You can easily configure Gateway pro using a Mobile app.
